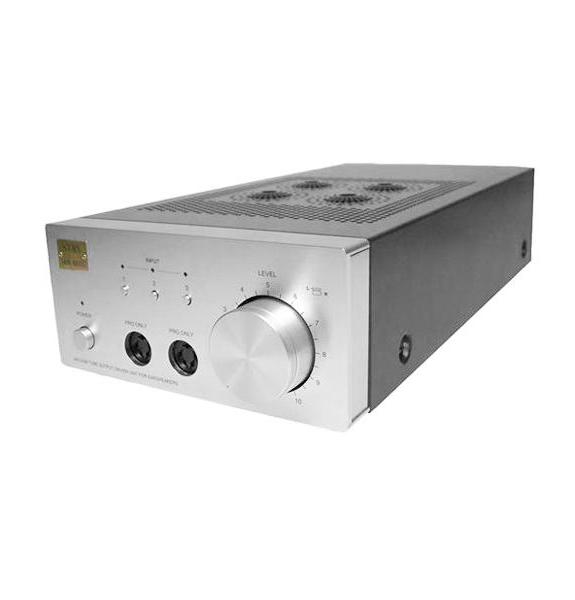

Stax SRM-007tA (SRM-007tII) Driver Unit

$ 1,799.95

Quantity

Type: Vacuum tube output stage Low noise dual FET input Class A operation, Pure balance DC amplifier configuration Earspeaker driver unit
Vacuum Tube: 4 (6FQ7 / 6CG7)
Frequency Response: DC to 100,000Hz +0,-1.5dB w/ SR-007 or SR-404
High Harmonic Distortion: Max. 0.02% (with 1kHz, 100V r.m.s. )
Gain: 54dB (x500)
Input Terminal: 3 ( XLR x 1, RCA x 2) with 1 RCA parallel out
Rated Input Level: 200mV / 100V Outputs
Max. Input Level: 30V r.m.s. at min. volume
Input Impedance: 50Kohm, 50kohm x 2 during balance
Max. Output Voltage: 340V r.m.s. (1kHz)
Standard Bias Voltage: PRO 580V x 2
Power Voltage Frequency: 117V (50Hz / 60Hz)
Power Consumption: 55W
Temperature & Humidity: 0 to 35ºC / 90% max. without condensation
Dimensions: 7.7 (W) x 4.1 (H) x 16.5 (D) in
Weight: 10.4lbs
