Stax SRM-353X Driver Unit


$ 849.99

  • Carefully hand selected high quality parts of audio grade further improves tonal quality
  • Wider frequency response from re-examination of circuitry
  • Newly added XLR input terminal
  • Custom made 2 axis 4 gang volume control
  • Extravagant non-magnetic aluminum alloy chassis

    • Type: All-stage semiconductors, Low-noise dual FET input Class A operation, Pure balance DC amplifier configuration Earspeaker driver unit
    • Frequency Response: DC to 90,000Hz (with 1 SR-L series Earspeaker)
    • High Harmonic Distortion: Max 0.01% (1kHz at 100V r.m.s. with SR-L500)
    • Gain: 60dB (x1000)

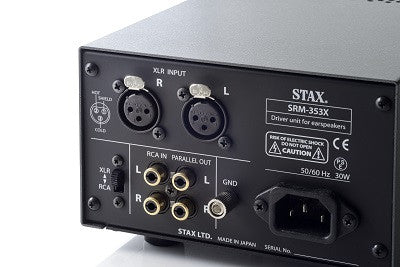

    • Input Terminal: 1 RCA with 1 RCA parallel out and XLR
    • Rated Input Level: 100mV / 100V Outputs
    • Max. Input Level: 30V (at minimum volume level)
    • Input Impedance: 50K ohm(RCA) 50K ohm x2(XLR)
    • Max. Output Voltage: 400V r.m.s. (1kHz)
    • Standard Bias Voltage: PRO 580V x 2
    • Power Voltage Frequency: 117V (50Hz / 60Hz)
    • Power Consumption: 30W
    • Temperature & Humidity: 0 to 35ºC / 90% max. without condensation
    • Dimensions: W5.9 x H3.9 x D14.2 in
    • Weight: 6.6lbs
    • Accessories: AC adapter
