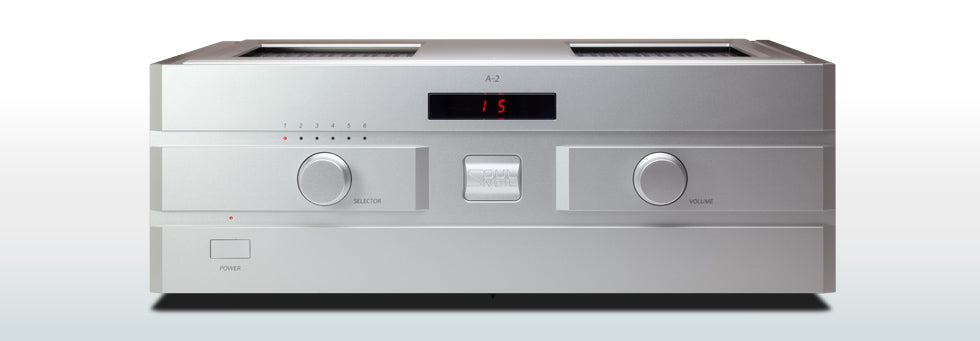

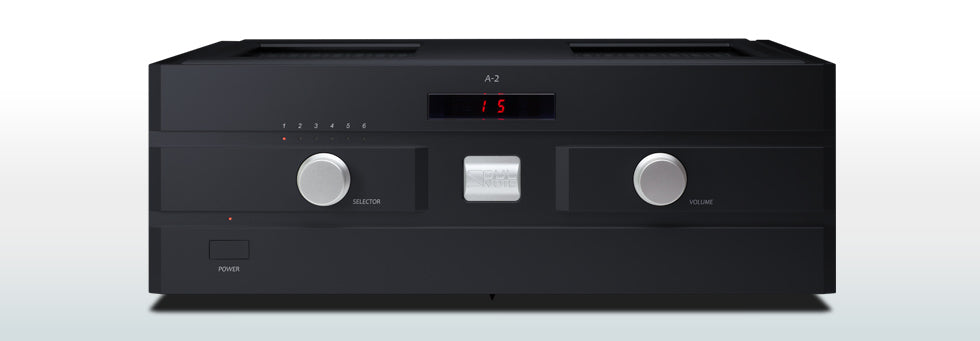

Soulnote A-2 ver.2 Integrated Amplifier

Specifications

• Output 80 W × 2 (8 Ω), 160 W Ũ 2 (4 Ω), 400 W (BTL MONO 8 Ω)
• Total harmonic distortion factor 0.16% (1 W 8 Ω)
• Frequency characteristics speaker (8 Ω 1 W): 3 Hz to 240 kHz (± 1.0 dB)
• Input sensitivity / impedance LINE 1, 2, 3 (balance): 700 mV / 16 kΩ, LINE 4, 5, 6: 700 mV / 8 kΩ
• S / N ratio 110 dB (IHF A network)
• Power supply voltage AC 100 V 50/60 Hz coming with a step-down transformer to adjust to voltage of the global market
• Power consumption 235 W (J60065), 70 W (idling)
• Maximum external dimensions Body: 430 (W) x 162 (H) x 423 (D) mm
• Weight Approximately 20 kg
