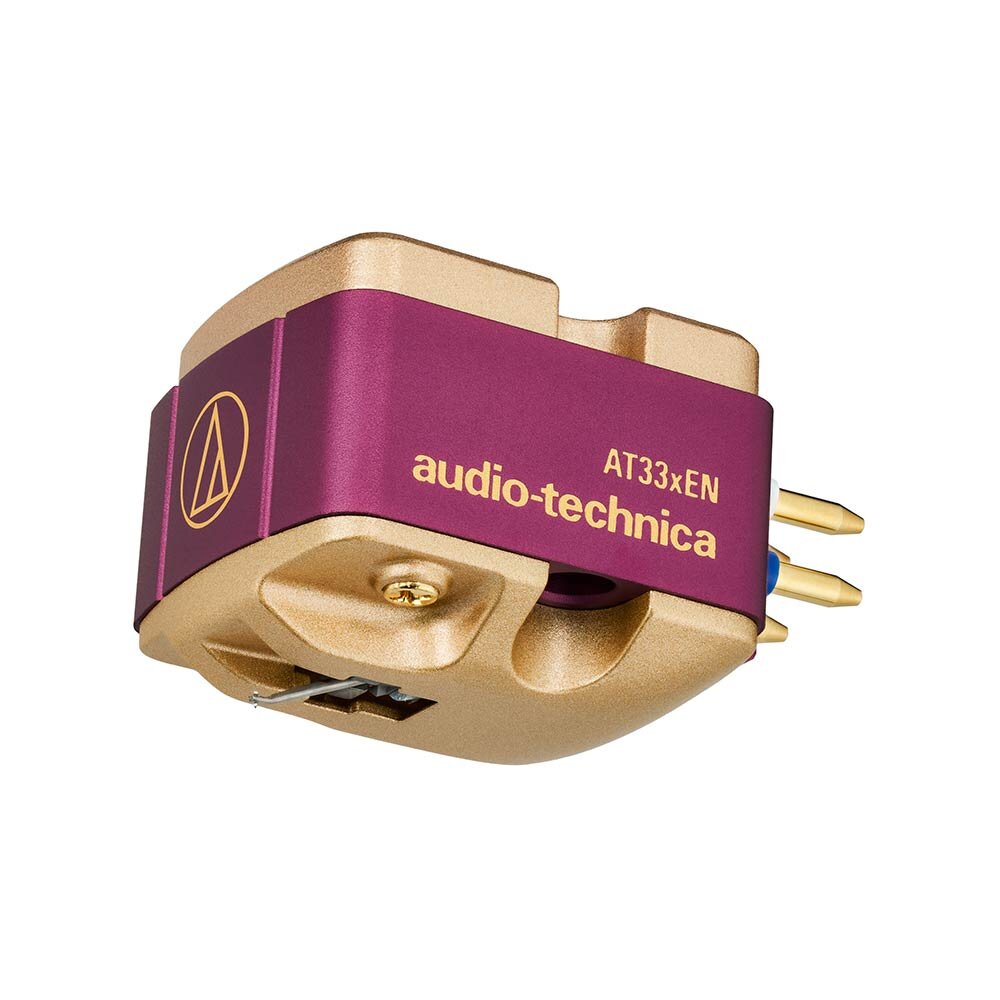

Audio-Technica AT33xEN Dual Moving Coil Cartridge

Audio-Technica

$ 589.95

  • Frequency Response: 15-50,000 Hz

  • AT33xEN Specifications

    Type
    MC type
    Playback Frequency Range
    20 ~ 40,000Hz
    Output Voltage
    0.4mV (1kHz and 5cm/sec.)
    Channel Separation
    27dB (1kHz)
    Output Balance
    1.0dB (1kHz)
    Tracking Force
    1.8 - 2.2g (2.0g standard)
    Coil Impedance
    12 Ω (1kHz)
    Direct Current Resistance
    12 Ω
    Load Impedance
    ≥100 Ω (when head amplifier connected)
    Coil Inductance
    26 μH (1kHz)
    Static Compliance
    21 x 10-6 cm/dyne
    Dynamic Compliance
    6 x 10-6 cm/dyne (100Hz)
    Stylus
    Nude Elliptical 0.3 x 0.7 mil
    Cantilever
    Duralumin tapered pipe
    Vertical Tacking Angle
    19°
    Dimensions
    H16.1 x W16.6 x D26.1 (mm)
    Threaded Hole - M2.6 × 2
    Weight
    10.1 g
    Accessories Furnished
    Non-magnetic screwdriver
    Brush
    Washer × 2
    Cartridge installation screws (M2.6) (8.0 mm × 2, 10.0 mm × 2, 13.0 mm × 2)
    Protector
