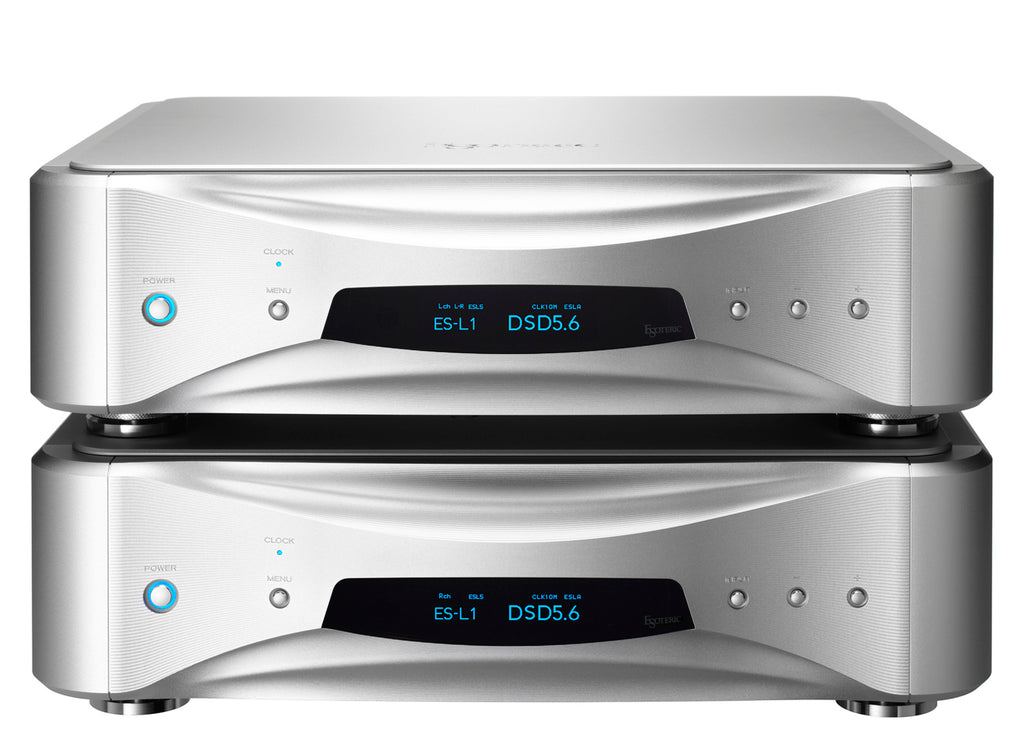

| Digital audio inputs |
|
| ES-LINK |
2 |
| Input signal formats |
Linear PCM (ES-LINK5 format) |
| 44.1k to 768kHz 48bit |
| DSD (ES-LINK5 format) |
| 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz |
| XLR |
1 |
| Input level |
5.0Vp-p |
| Input impedance |
110Ω |
Input signal formats
(DUAL connection)
|
Linear PCM (DUAL AES format) |
| 88.2k to 384kHz, 16bit to 24bit |
| Linear PCM (ES-LINK3 format) |
| 88.2k to 192kHz, 48bit |
| DSD (ES-LINK1, ES-LINK2, DoP format) |
| 2.8MHz |
Input signal formats
(SINGLE connection)
|
Linear PCM (AES/EBU format) |
| 32k to 192kHz, 16bit to 24bit |
| DSD (ES-LINK1, ES-LINK2, DoP format) |
| 2.8MHz |
| RCA |
2 |
| Input level |
0.5Vp-p |
| Input impedance |
75Ω |
| Input signal formats |
Linear PCM (IEC60958 format) |
| 32k to 192kHz, 16bit to 24bit |
| DSD (DoP format) |
| 2.8MHz |
| OPTICAL |
1 |
| Input level |
–24.0 to –14.5dBm peak |
| Input signal formats |
Linear PCM (IEC60958 format) |
| 32k to 192kHz, 16bit to 24bit |
| DSD (DoP format) |
| 2.8MHz |
| USB |
1 (USB2.0 standatd) |
| Input signal formats |
Linear PCM 44.1k to768kHz, 16bit to 32bit |
| DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz |
| Analog audio outputs |
|
| XLR/ESL-A |
x 1 (mono) each for left and right channels |
| Output impedance |
100Ω (XLR) |
| Maximum outout level |
5.0Vrms (XLR, 1kHz, full scale PCM signal input, 10kΩ loaded) |
| RCA |
x 1 (mono) each for left and right channels |
| Output impedance |
47Ω |
| Maximum output level |
2.5Vrms (1kHz, full scale PCM signal input 10kΩ loaded) |
| Clock input |
|
| BNC |
x 1 each for left and right channels |
| Input impedance |
50Ω |
| Input level |
Sine wave 0.5 to 1.0Vrms |
| Frequency that can be input |
10MHz (±10ppm) |
| General |
|
| Power supply |
|
| |
AC 100V. 50/60Hz |
| |
|
| |
|
|
|
| Power consumption |
20W |
| External dimensions (W×H×D)
|
445 × 132 × 448mm
17-⅝" × 5-¼" × 17-¾" (including protrusions) |
| Weight |
|
| Left channel |
23.1kg / 51 lb |
| Right channel |
23.0kg / 51-¾ lb |
| Included accessories |
Power cord × 1
HDMI cables × 2
Felt pads × 8
Owner's manual × 1
Warranty card × 1 |
