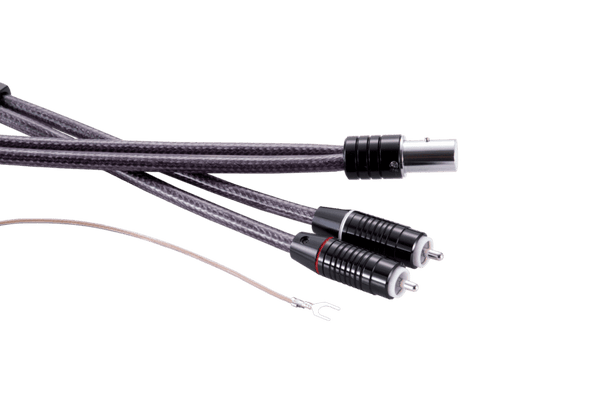

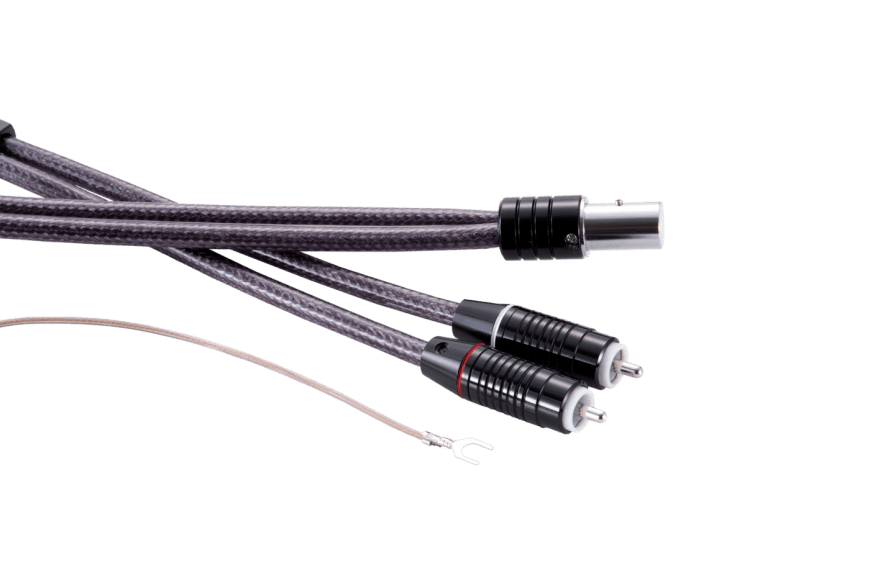

IKEDA HBC-MS-5000DR female DIN 5pin to male RCA Phono cable 1.2m

Harmonix

$ 599.95

This phono cable features a low resistance design, created to maximize the appeal of analog playback.
The HBC-MS-5000 series features a hybrid structure combining high-purity 6N copper and OFC (high-purity oxygen-free copper),
pursuing transparency in signal transmission, balance in sound quality, and reliability in long-term use.
Constitution: 2-core shielded type
Conductor Type: 0.26φ high purity 6N copper + 0.12φOFC
Conductor cross-sectional area: 0.57sq x 2 cores
Insulation: Polyethylene
Shielding layer: 0.12φ black UEW high density braid
Terminal plating: Rhodium plated
Sheath Color: Transparent smoked PVC
Conductor Resistance: 32mΩ/m or less
Capacitance:
Conductor-shield: 90pF/m
Conductor-to-conductor: 60pF/m
Insulation resistance: 1000MΩ/Km
cable length: 1.2m
