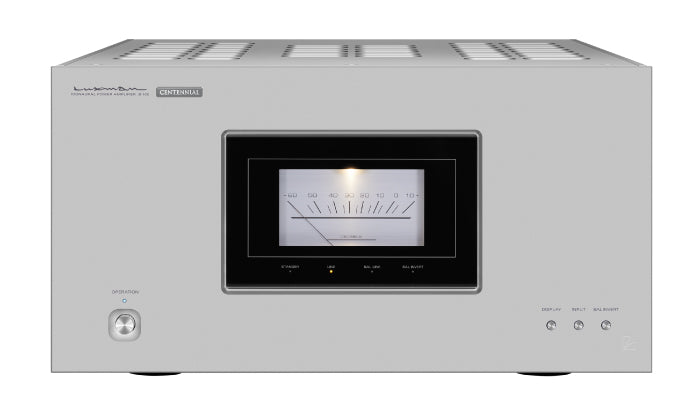

Luxman B-100 CENTENNIAL Power Amplifier

Luxman B-100 CENTENNIAL Power Amplifier

Luxman

$ 19,999.95

Quantity

Rated output	125 W (8 Ω), 250 W (4 Ω), Class A operation up to 25 W (8 Ω)
Instantaneous max. output	1,000 W (1 Ω)
Input sensitivity	1.12 V / 125 W (8 Ω) GAIN 29.0 dB
Input impedance	Unbalanced 51 kΩ Balanced 55 kΩ
Frequency response	20 Hz to 20 kHz (+0, -0.1 dB) 1 Hz to 180 kHz (+0, -3.0 dB)
Total harmonic distortion	0.0014 % or less (1 kHz / 8 Ω) 0.04% or less (20 Hz to 20 kHz / 8 Ω)
S/N ratio (IHF-A)	119dB
Amplification circuit	LIFES 1.1
Output configuration	3 stage Darlington 4 paralleled push-pull × 4
Damping factor	1,000 (1 kHz) / 2,300 (50 Hz), measured using the EIAJ current injection method

Power consumption	320 W 230 W (under no signal) 1.0 W (at standby)
External dimensions	440 (W) x 243 (H) x 651 (D) mm Rear side terminal of 38 mm included in depth
Net weight	61.5 kg
Accessories	Power cable
Speaker terminal Supported Y-lug terminal dimension	Width of part a: 14 mm or less Width of part b: 7 mm or more * Connection may not be performed depending on the shape of the Y-lug terminal.

Power Supply: 100V (50Hz/60Hz): comes with an appropriate step-down transformer to adjust to local voltage of 230V~(50Hz)/115V~(60Hz)
