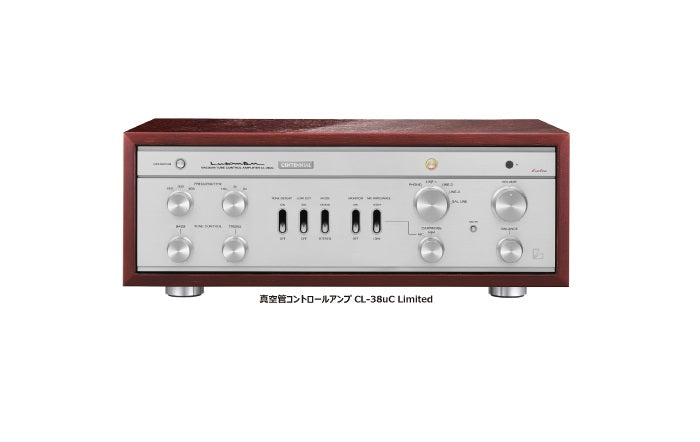

Luxman CL-38uC Limited Vacuum Tube Control Amplifier

Luxman

$ 3,899.95



    Input sensitivity/
    input impedance    		 PHONO (MM): 2.0mV/47kΩ
    PHONO (MC high): 0.3mV/100Ω
    PHONO (MC low): 0.08mV/30Ω
    LINE: 190mV/50kΩ
    BAL.LINE: 190mV/20kΩ *2
    Output/output impedance Rated 1V/300Ω
    Frequency response PHONO: 20Hz to 20kHz (±0.5dB)
    LINE/BAL.LINE: 10Hz to 70kHz (within -3.0dB)
    Total harmonic distortion 0.006% or less (1kHz)
    0.06% or less (20Hz to 20kHz)
    S/N ratio (IHF-A) PHONO (MM): 68dB or more
    PHONO (MC high): 63dB or more
    PHONO (MC low): 60dB or more
    LINE/BAL.LINE: 100dB or more


    Tone control ±8dB, selectable frequency range
    BASS: 150/300/600Hz,
    TREBLE: 1.5k/3k/6kHz
    Low cut 30Hz(-6dB/oct.)
    Circuit SRPP
    Vacuum tubes ECC803S×3, ECC802×5
    Power supply 100V (50Hz/60Hz): comes with an appropriate step-down transformer to adjust to local voltage of 230 V～(50 Hz)/115 V～ (60 Hz)
    Power consumption 32W
    External dimensions 440(W) x 169(H) x 307(D) mm
    19mm front panel knob of and 12mm rear panel
    terminals are included in the depth measurement
    Net weight 13.3kg (main unit)
    Accessories Remote control (RA-25), Power cable (JPA-15000)
