LUXMAN 100th Anniversary —

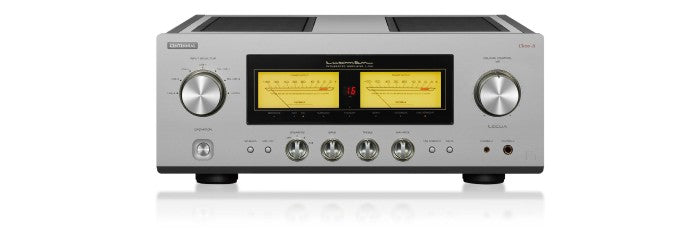

L-100 CENTENNIAL, the Ultimate Pure Class-A Integrated Amplifier,
reviving our musical experience
Created to commemorate LUXMAN’s 100th anniversary, the L-100 CENTENNIAL is a pure Class-A integrated amplifier devoted entirely to the joy of exquisite music reproduction. Every element has been designed to preserve the integrity of the most delicate of musical signals while pursuing the highest level of sonic purity. At its core is LIFES 1.1, the latest evolution of LUXMAN’s proprietary amplification feedback engine, which cancels only the detected distortion components without degrading the audio signal. Volume control operation is handled by our newly developed LECUA1000, a simple, yet ultra-precise attenuator that preserves signal freshness. The output stage operates entirely as a pure Class-A amplifier, with uncompromising dedication to sound quality. Despite a rated output of 20W, our robust power supply design supports reproduction of any input source with remarkable authority and dense musicality. This series is the ultimate expression of LUXMAN’s 100-year heritage and the L-100 CENTENNIAL enhances listening as a truly sublime experience.
| Rated Output Power |
20 W + 20 W (8 Ω),
40 W + 40 W (4 Ω) |
| Input Sensitivity / Input Impedance |
PHONO (MM): 2.5 mV / 47 kΩ
PHONO (MC): 0.3 mV / 100 Ω
LINE: 180 mV / 47 kΩ
BAL.LINE: 180 mV / 55 kΩ
MAIN-IN: 450 mV / 47 kΩ |
| Output Voltage |
PRE OUT: 1 V |
| Frequency Response |
PHONO: 20 Hz to 20 kHz (±0.5dB)
LINE: 20 Hz to 100 kHz (within –3.0 dB) |
| Total Harmonic Distortion |
0.005% or less (8 Ω, 1 kHz)
0.015% or less (8 Ω, 20 Hz to 20 kHz) |
| Signal-to-Noise Ratio (IHF-A) |
PHONO (MM): 80 dB or more
PHONO (MC): 65 dB or more
LINE: 98 dB or more |
| Volume Control |
New LECUA1000 |
| Amplification Circuit |
LIFES 1.1 |
| Output Configuration |
Bipolar, 3-parallel push-pull |
| Damping Factor |
300 |
| Maximum Tone Control Adjustment |
BASS: ±8 dB at 100 Hz
TREBLE: ±8 dB at 10 kHz |
| Power Supply Voltage |
100V (50Hz/60Hz): comes with an appropriate step-down transformer to adjust to local voltage of 230V~(50Hz)/115V~(60Hz) |
| Power Consumption |
260 W
210 W (under no signal), 0.5W (standby) |
| Dimensions |
440 (W) × 178 (H) × 454 (D) mm
front side knob of 20 mm and rear side terminal of 27 mm included in depth |
| Weight |
25.4 kg (main unit) |
| Accessories |
Remote controller (RA-17A), power cable |
Speaker Terminals
Supported Y-lug terminal dimension |
Width of part a : 15 mm or less
Width of part b : 8 mm or more
* Connection may not be performed
depending on the shape of the Y lug terminal. |
* LIFES st
