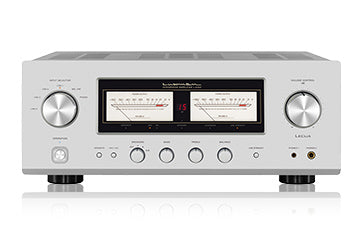

Luxman L-505Z Integrated Amplifier


$ 3,499.95


Rated output 100W + 100W (8Ω)
                       150W + 150W (4Ω)

Input sensitivity/
input impedance PHONO (MM): 2.5mV/47kΩ
                             PHONO (MC-H): 0.3mV/100Ω
                             LINE: 180mV/47kΩ
                             BAL.LINE: 180mV/55kΩ
                             MAIN IN: 1.V/47kΩ

Output voltage PRE OUT: 1V

Frequency response PHONO: 20Hz to 20kHz (±0.5dB)
                                 LINE: 20Hz to 100kHz (within -3dB)

Total harmonic distortion 0.009% or less (8Ω, 1kHz)
                                          0.09% or less (8Ω, 20Hz to 20kHz)

S/N ratio (IHF-A) PHONO (MM): 87dB or more
                               PHONO (MC): 70dB or more
                               LINE: 104dB or more

Volume adjustment LECUA

Amplification feedback circuit LIFES 1.0

Output configuration Bipolar -parallel push-pull

Damping factor    200
Max. amount of tone control    BASS: ±8dB at 100Hz
                                                     TREBLE: ±8dB at 10kHz
Power supply    100V (50Hz/60Hz): comes with an appropriate step-down transformer to adjust to local voltage of 230V~(50Hz) or 115V~(60Hz)
Power consumption    270W
                                    85W (under no signal), 0.5W (at standby)
External dimensions    440(W) x 178(H) x 454(D) mm
                                    front side knob of 20mm and rear side terminal
                                    of 27mm included in depth
Net weight    22.5kg (main unit)
Accessories    Remote control (RA-17A)
                        Power cable
Speaker terminal                 Width of part a: 15mm or less
Supported Y-lug terminal   Width of part b: 8mm or more

* Connection may not be performed depending on the shape of the Y-lug terminal.
