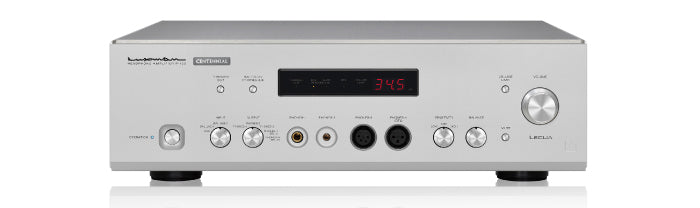

Luxman P-100 CENTENNIAL Headphone Amplifier

Luxman

$ 7,299.95

Rated output Unbalanced:4W + 4W (8Ω), 2W + 2W (16Ω), 1W + 1W (32Ω), 53mW + 53mW (600Ω)
Balanced:8W + 8W (16Ω), 4W + 4W (32Ω) ,213W + 213W (600Ω)
Instantaneous max. output Unbalanced:5W + 5W (8Ω)
Balanced:20W + 20W (8Ω)
Input sensitivity/
input impedance		 Unbalanced:1.0V / 14kΩ
Balanced:2.0V / 28kΩ
Frequency response 20Hz to 20kHz (+0, -0.1dB)
10Hz to 175kHz (+0, -3.0dB)
Total harmonic distortion Unbalanced:0.0025% (1kHz)
Balanced:0.0015% (1kHz)
S/N ratio (IHF-A) Unbalanced:117dB
Balanced:119dB
Power transformer OI type x 2 (L/R independent) + EI type (Peripheral circuitry)
Insulator feet Cast iron density gradient x 4
Power supply 100V (50Hz/60Hz): comes with an appropriate step-down transformer to adjust to local voltage of 230V~(50Hz)/115V~(60Hz)
Power consumption 67W, 47W (under no signal)
External dimensions 446(W) x 136(H) x 401(D) mm
front side knob of 14mm and rear side terminal
of 8mm included in depth
Net weight 19.7kg (main unit)
Accessories Power cable
