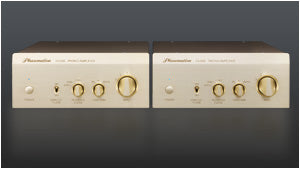

Phasemation EA-550 Phono Amplifier

Phasemation


$ 5,399.95




Product Specification

Form V-I/I-V conversion type all-stage symmetric non-feedback equalizing amplifier
Input Type (Cartridge) MM MC
Input Sensitivity 2.5 mV 0.13 mV
Suitable Cartridge Output Impedance 47 kΩ or less 1.5 to 40Ω
Gain 38 dB 64 dB
Input Equivalent S/N Ratio –120dBV –140dBV
Rated Output Voltage 200 mV (1kHz)
Rear Curve Tolerance ± 0.5 dB (20Hz to 20kHz)
Power Consumption 10W (100VAC 50 - 60Hz) for each Ch
Dimensions 211 (W) × 93 (H) ×360 (D)
Weight 5.5kg for each Ch

*Coming with an appropriate step-down transformer to adjust to local voltage of the global market.
