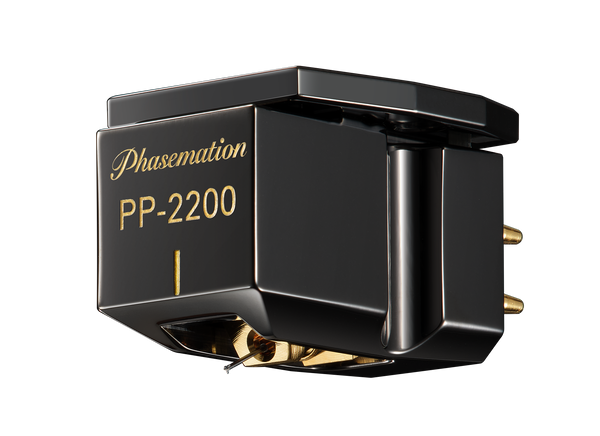

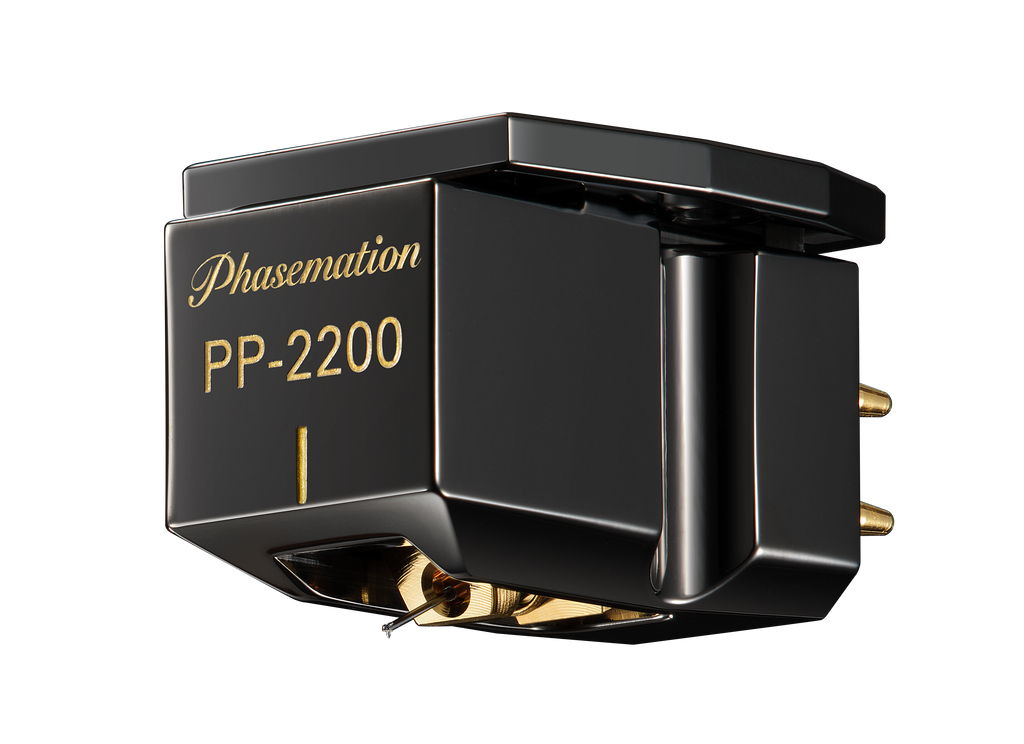

Phasemation PP-2200 Moving Coil Cartridge

Specifications:

Power Generation Method:    Moving Coil Type
Impedance:    3.8 Ohm
Applicable Stylus Force :   1.7 to 2.0g
Output Voltage:    0.31mV(horizontal direction of 1kHz 50mm/s)
Compliance:    8.5X10(e-6)cm/dyne
Playing Frequency Range:    10Hz to 30kHz
Separation:    30dB or more (1kHz)
Channel Balance:    Within 1dB (1kHz）
Range of Recommended Temperature:    20℃ to 26℃
Tare:    14.9g
Stylus Chip:    Diamond(line contact / curvature 0.03×0.003mm)
Cantilever:    Pure Boron φ0.26
Magnet:    Samarium Cobalt Magnet　
Magnetic Circuit Composition Material:    Permendur
Base:    Stainless(Diamond Like Carbon processing)
Body:    Duralumin(Diamond Like Carbon processing)
