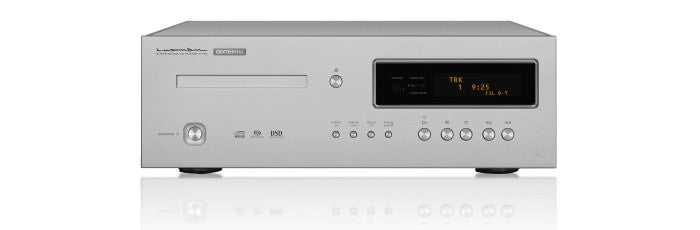

Luxman D-100 CENTENNIAL SACD/CD Player

Luxman

$ 12,999.95

Spec

Rated output 125 W (8 Ω), 250 W (4 Ω),
Class A operation up to 25 W (8 Ω)
Instantaneous max. output 1,000 W (1 Ω)
Input sensitivity 1.12 V / 125 W (8 Ω)
GAIN 29.0 dB
Input impedance Unbalanced 51 kΩ
Balanced 55 kΩ
Frequency response 20 Hz to 20 kHz (+0, -0.1 dB)
1 Hz to 180 kHz (+0, -3.0 dB)
Total harmonic distortion 0.0014 % or less (1 kHz / 8 Ω)
0.04% or less (20 Hz to 20 kHz / 8 Ω)
S/N ratio (IHF-A) 119dB
Amplification circuit LIFES 1.1
Output configuration 3 stage Darlington 4 paralleled push-pull × 4
Damping factor 1,000 (1 kHz) / 2,300 (50 Hz), measured using the EIAJ current injection method
Power consumption 320 W
230 W (under no signal)
1.0 W (at standby)
External dimensions 440 (W) x 243 (H) x 651 (D) mm
Rear side terminal of 38 mm included in depth
Net weight 61.5 kg
Accessories Power cable
Speaker terminal
Supported Y-lug terminal dimension		 Width of part a: 14 mm or less
Width of part b: 7 mm or more

* Connection may not be performed depending on the shape of the Y-lug terminal.

Download

Spec

Rated output 125 W (8 Ω), 250 W (4 Ω),
Class A operation up to 25 W (8 Ω)
Instantaneous max. output 1,000 W (1 Ω)
Input sensitivity 1.12 V / 125 W (8 Ω)
GAIN 29.0 dB
Input impedance Unbalanced 51 kΩ
Balanced 55 kΩ
Frequency response 20 Hz to 20 kHz (+0, -0.1 dB)
1 Hz to 180 kHz (+0, -3.0 dB)
Total harmonic distortion 0.0014 % or less (1 kHz / 8 Ω)
0.04% or less (20 Hz to 20 kHz / 8 Ω)
S/N ratio (IHF-A) 119dB
Amplification circuit LIFES 1.1
Output configuration 3 stage Darlington 4 paralleled push-pull × 4
Damping factor 1,000 (1 kHz) / 2,300 (50 Hz), measured using the EIAJ current injection method
Power consumption 320 W
230 W (under no signal)
1.0 W (at standby)
External dimensions 440 (W) x 243 (H) x 651 (D) mm
Rear side terminal of 38 mm included in depth
Net weight 61.5 kg
Accessories Power cable
Speaker terminal
Supported Y-lug terminal dimension		 Width of part a: 14 mm or less
Width of part b: 7 mm or more

* Connection may not be performed depending on the shape of the Y-lug terminal.

Download


  • Supported discs 2 channel SACD, CD
    Supported sampling
    frequencies    		 USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit)
    USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit)
    Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit), 2.8 MHz (DoP)
    Analog output voltage /
    impedance    		 Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω
    For SACD / DSD : 2.3 V
    Frequency response CD / COAX / OPT : 5 Hz to 20 kHz (+0, -0.5 dB)
    SACD : 5 Hz to 38 kHz (+0, -3.0 dB)
    USB : 5 Hz to 58 kHz (+0, -3.0 dB)
    Total harmonic distortion CD : 0.0016 %, SACD : 0.0007 %, USB : 0.0006 %
    S/N ratio (IHF-A) CD : 125 dB, SACD : 125 dB, USB : 125 dB
    D/A converter ROHM BD34302EKV (monaural mode) x 2
    Power supply 100V (50Hz/60Hz): comes with an appropriate step-down transformer to adjust to local voltage of 230V~(50Hz)/115V~(60Hz)
    Power consumption 44 W
    Dimensions 440 (W) x 154 (H) x 420 (D) mm
    front side knob of 2 mm and rear side terminal of 13 mm included in depth
    Net weight 25.4 kg
    Accessories Remote control (RD-21), Power cable
    *
