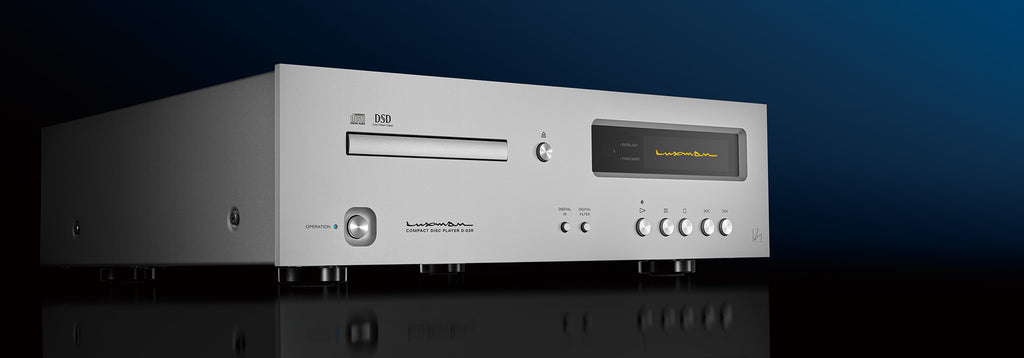

Luxman D-03R Digital Player

Luxman D-03R Digital Player

Luxman

$ 2,799.95

Quantity

Supported discs	CD, MQA-CD
Supported sampling frequencies	USB input (PCM) : 44.1 kHz, 48 Hz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz (16, 24, 32-bit) USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit) Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit), 2.8 MHz (DoP)
Analog output voltage / impedance	Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω
Frequency response	CD : 5 Hz to 20 kHz (+0, -1.0 dB) COAX / OPT : 5 Hz to 47 kHz (+0, -3.0 dB) USB : 5 Hz to 47 kHz (+0, -3.0 dB)
Total harmonic distortion	CD : 0.002 %, COAX / OPT : 0.001 %, USB : 0.001 %

S/N ratio (IHF-A)	CD : 110 dB, COAX / OPT :118 dB, USB : 118 dB
D/A converter	ROHM BD34352EKV (monaural mode) x 2
Power supply	100 V - (50 Hz) / (60 Hz) with appropriate step-down transformer adjusting to voltage of global market.
Power consumption	16 W
Dimensions	440 (W) x 133 (H) x 410 (D) mm front side knob of 2 mm and rear side terminal of 8 mm included in depth
Net weight	13.2 kg
Accessories	Remote control (RD-28), Power cable
